EndoCapture System
The most convenient ways in entering patient data: Open structural diagnosis samples with presets and auto fill-ins that can generate a report with minimum efforts.
Image capturing: standard definition and high definition in any image format.
Patient data security: All information are automatically saved in database, user privileges defined settings.
Image capture and control: Unique design that enables image and video capturing using control buttons available on the endoscope.
Software flexibility: User defined data entry settings.
Image handling: Captured images can be labeled with specific findings and pictorial tools.
Fully customized report format: All reports are specifically designed to each user.
Network database: SQL Server offers fast network database.
Video captured: full screen replay, image cropping and editing.
Advance network features: allows full integration of individual workstations
HIS interface: provides interface with hospital HIS/PACS systems in different communication protocols such as HL-7, Webservice, DBView, etc.
PACS interface : Can export/import images under DICOM format

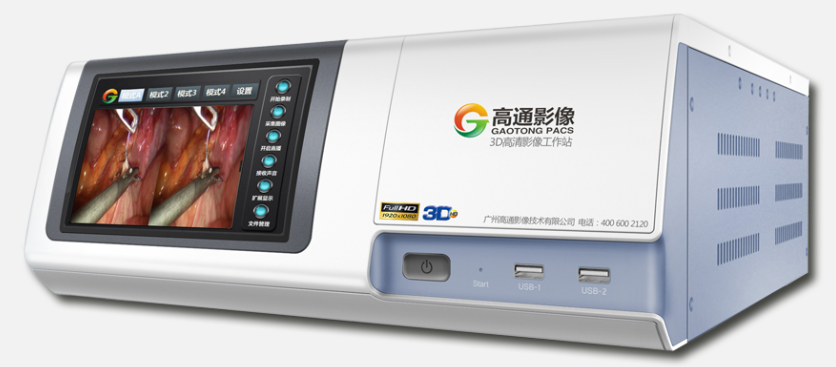

GT-3DHD EndoCapture System
Support real 3D HD video; full double 1920 X 1080 channel recording
* Complete maneuverability without the need of neither a keyboard nor a mouse, may start and stop
recording, adjust video brightness, contrast, saturation levels and color tones
* Record high definition 3D video, adjustable bit-rate setting from 2000-20000mbps, and one hour
recording setting from 3-20GB
* Adjustable different 3D formats: 3D-HD multi-video MVC coding technique, left-right screen photo
mosaic, and recordable in 2D format, left or right screen select ability.
* Store up to 180 hours of operation in 3D video, user setting adjustable
* Fully integrated design with 7" monitor, front panel USB and SD ports
* Image capturing and start/stop recording with laparoscope control buttons
* Touchscreen control may re-play recorded video, switching 2D/3D modes
* Record coding use H.264, recorded documentation use Transport Stream
* Synchronous display on touch screen and laparoscopic monitors, no time delay
* Full HD resolution, may crop images during playback, and edit video
* May record audio simultaneously
* Recording quality fully adjustable, GopPicSize and GopRefDist, etc.
* Documents may be saved in 4 different formats and specifications
* Documents may be exported to USB or external drives
* Auto de-interlace function, no saw tooth phenomenon
Supports these 3D Laparoscope brands

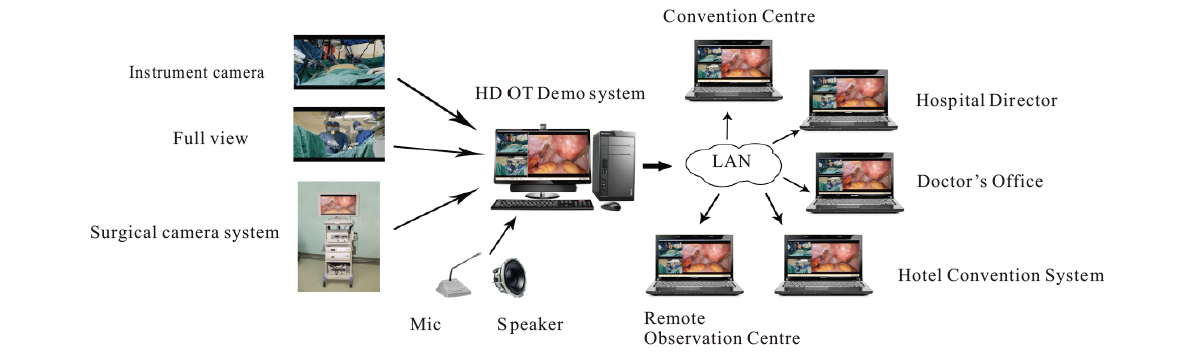

High Definition Operating Theatre Educational and Live Broadcasting System
Main Features
1, Multi-channel transmission (laparascopy, full view camera, surgical equipment camera, ultrasound
and X-Ray images etc.) with simutaneous audio recording and live broadcast.
2, From the hospital’s local area network, operations can be recorded, playback, downloaded.
3, Via the Internet, far distance broadcast, record and playback feasibility.
4, Full HD 1080 transmission, high resolution images.
5, Video images can be displayed in tri-plex mode, all of the three available images can be manipulated
freely at any position on the screen or at full screen for any one of the images.
6, Compliant to HIS/PACS/EMR/LIS formats, standard DICOM3.0 and HL-7 connectivity, seamless
connection to hospital's information system.
